SiteWizard™ Cable and Antenna Analyzer

The SiteWizard™ MTM-427 is a Cable and Antenna Analyzer that is primarily addressing the need for a tool engineered for field use and taking into consideration the different use-cases and conditions associated with this mission; I.E a Cable and Antenna Analyzer that is durable and convenient. Here, durability means maximum RF protection, and ruggedized construction, while convenience involves ease of use, intuitive user interface, flexible test accessibility and the compactness that serves even the most difficult test points. Maintaining the same performance and accuracy of conventional larger Cable and Antenna Analyzers, the SiteWizard™ MTM-427 considers the practical user needs for a heavy-duty and handy tool with maximum reliability against frequent and typical field accidents and faults.

The highly compact size and robust casing of the SiteWizard™ MTM-427 Cable and Antenna Analyzer paves the way for testing scenarios that have been hard to realize before. Furthermore, it allows testing without a need for the additional launch cable (phase stable cable) in some cases. State-of-the-art frequency domain reflectometer is employed as the line sweep testing technology in the SiteWizard™ MTM-427 to guarantee the highest resolution that pinpoints adjacent faults along the cable path. Keeping in mind the emerging test needs of inbuilding installations such as DAS, The SiteWizard™ MTM-427 as a miniature portable Cable and Antenna Analyzer is the best match for the special nature of such missions.

SiteWizard™ MTM-427 Cable and Antenna Analyzer

HIGHLIGHTS

The SiteWizard™ MTM-427 family is Consultix’s next generation of ultra-portable field test equipment, engineered for maximum convenience in the field without sacrificing precision and accuracy.

It’s the first Cable and Antenna tester in its class to feature both quick and precise sweep testing along with a spectrum analyzer option all in a lightweight shock-protected unit.

SiteWizard™ MTM-427 Cable and Antenna Analyzer fulfills the specific requirements of installations and maintenance teams, eliminating the need for handling heavy, bulky and expensive testers.

The device provides a frequency range from 400 to 2700 MHZ which covers most of the wireless bands serving 2G (GSM), 3G (UMTS), 4G (LTE) as well as WIFI 2.4 GHz band.

The 4.3” Touch screen enables measurements at maximum ease and handiness with a myriad of UI features to sort, review and compare curves and readings.

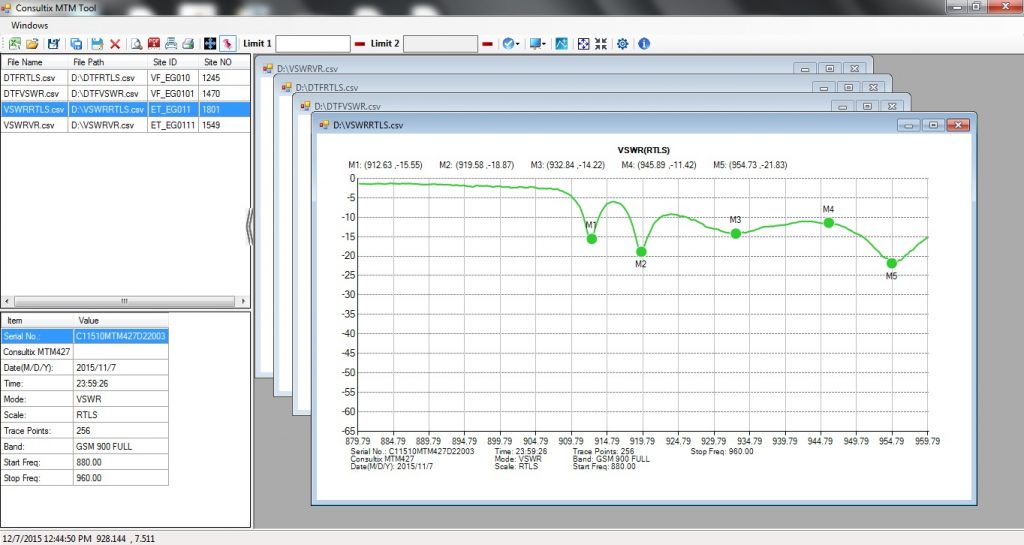

PC-Software-Site-Auditor

Applications:

  • BTS Site installation, commissioning, and acceptance
  • BTS site maintenance
  • Distributed Antenna Systems validation (DAS sweep testing)
  • Small cell installations
  • Antenna certification
  • Cables and feeders certifications

Typical Users:

  • Network Rollout engineers
  • Cell site installation, commissioning and maintenance engineers
  • O&M (Operation & Maintenance) engineers
  • Implementation engineers
  • RF & RAN engineers
  • Field Engineers
  • Site Acceptance engineers
  • Telecom sub-contractors and service companies

FEATURES

Fit

  • Lightweight: 700gm (1.5 pounds)

  • Heavy-Duty Construction

  • Industrial Screen 4.3” Touchscreen

  • RF & Shock Protection

  • Industrial RF Ports

  • Global Stock Delivery

  • Quick Service Programs

Smart

  • Spectrum Analyzer Option

  • Channel Power Measurement Option

  • 1 Second Calibration & Measurements

  • Internal & External Storage

  • Professional Reporting Software

  • Cable & Band Database

  • Friendly Touch-Interface



KEY PECIFICATIONS

. .
Frequency Range 400 to 2700 MHz (Optional: 100 MHz to 3200 MHz)
Measurement Modes VSWR, Return Loss, DTF & Cable Loss (Optional: Spectrum Analyzer)
VSWR Range 1:65
Return Loss Range 0:60 dB
Cable Length 0:1500 m
RF Protection 30 dBm (33dBm peak)
Measurement Speed 1 ms/datapoint
Accuracy Directivity Corrected: 42 dB (Calibration kit Return loss)
Weight 700 gm (1.5 lbs.)
Battery Operation Up to 8 Hours (Operation Sweep Continuous with)
