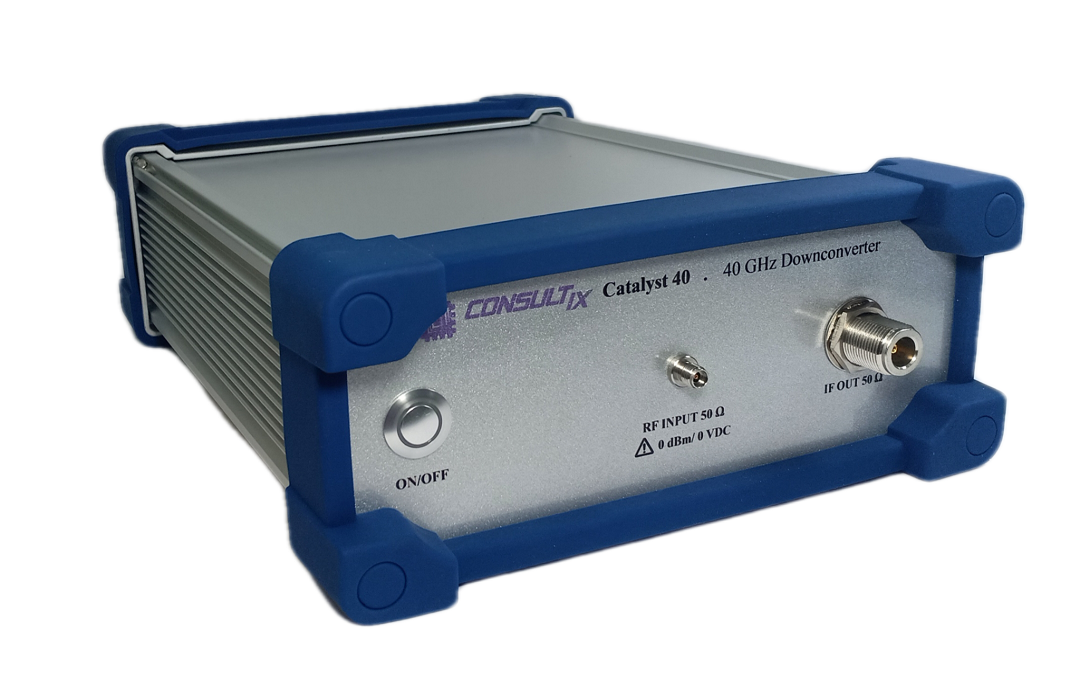

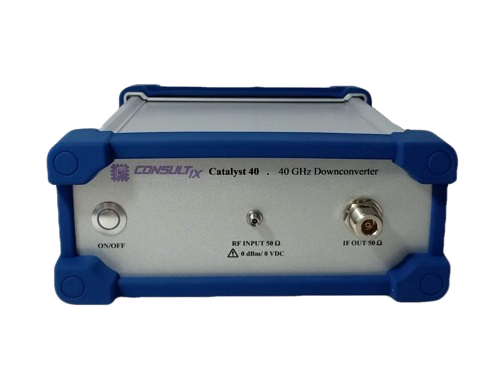

Catalyst ™40 GHz Downconverter


Catalyst-40 is setting new standards when handling mmWave signals either for measurement purposes or communications/reception applications.

The instrument employs state-of-the-art mmWave electronics to deliver exceptional RF performance. And the built-in local oscillator brings maximum simplicity to the user setup without extra external devices; Just connect the measured signal to the device RF input while connecting the IF output to your low-GHz spectrum analyzer, scanner or receiver.


The compact downconverter is ideal for field applications as well as several laboratory use-cases since the unit can be controlled via its windows application or optionally through a built-in Keypad and LCD. Additionally, for some scenarios that require using the device with one of Consultix receivers, the Catalyst-40 can be controlled from Consultix Walkview software as a single point of control/collection.





  • 8 dB Noise figure

  • -10 dBm P1dB (typ.)

  • 100 MHz Real-time Bandwidth

  • 4-6 dB Conversion Gain


  • Built-in LO for minimal user setup

  • Ergonomic Form Factor

  • 2.6 Kg weight (5.8 lbs.)

  • High-grade test accessories


Input Frequency Range 24 to 40 GHz
IF Output Frequency 2.4 GHz
Real-time Bandwidth 100 MHz
Tuning step 1 MHz (for RF center frequency)
Frequency Accuracy 0.3 ppm
Conversion gain 4-6 dB (conversion table included)
Noise Figure 6 dB (typ. 8 dB)
Power Supply Input: 100-240 VAC, 50-60 Hz / Output: 12 VDC, 2A
Control Catalyst app for Windows (standard). Optional through Consultix Walkview SW or device Keypad/LCD
Control interface USB
RF in port K-type female (2.92 mm)
Weight 2.6 Kg (5.8 lbs)
