CellWizard™ CW Receivers



Consultix ultra-portable CW receivers are ideal for walk-test applications. Whether they are used for pre-build site survey, model calibration, DAS testing or post-build coverage mapping, you are covered.

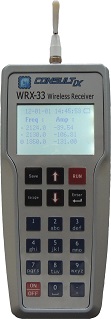

In addition to its WRX Handheld family, Consultix extended its portfolio with a miniature pocket-size receiver; the MRX pocket family that addresses the need for a small field setup with just a pocket receiver operated by Android phone or Tab.

The Family comprises a variety of multi-band models that meet every user's preferences.

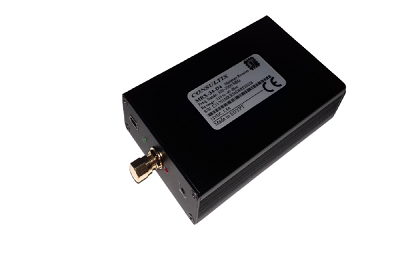

The flag-ship MRX-34-D4 model covers bands from 300 MHz to 3 GHz in one single device. And can be extended to 3.9 GHz via a soft key activation.

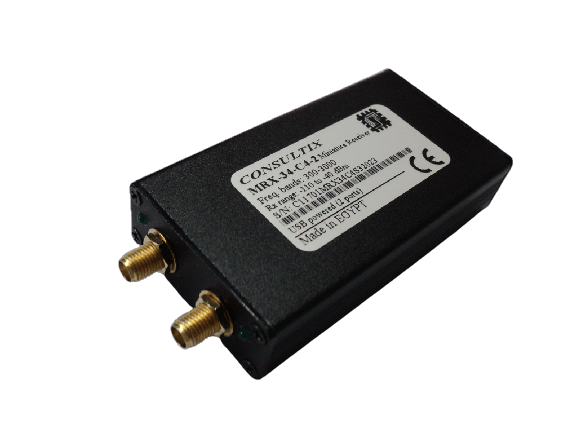

The MRX-34-C4-2 model is a pocket-size 3 GHz receiver that has a dual-port feature to allow utilizing 2 different antennas each one is specified for a certain frequency range for the utmost measurement accuracy.

HIGHLIGHTS

CellWizard™ Receivers are engineered to cope with the company vision to provide users with compact, task-oriented and user-friendly products covering every field requirement and test scenario.
The receiver is operated by the company’s WALKVIEW™ data collection software to automatically test & scan multiple CW signals via a very simple and intuitive user interface.

You no longer have to carry a heavy backpack, a complex scanner or a laptop when performing CW testing. The CellWizard™ MRX-Pro together with its WalkView™ android App. allow you to view live measurements of multiple channels simultaneously, draw RSSI levels on floor maps or export all data samples to your radio design software of choice… all from the comfort of your tablet.

Ask for our optional accessories such as test antennas, low-loss cables and shoulder strap for the ultimate test integrity and a smoother operation.

antenna-removebg-preview

FEATURES

  • Portable Handheld Receiver

  • Multi-Channel Scanning up to 4 Channels

  • 40-λ lee Criteria Support 2000 samples/second

  • -35 dBc Adjacent channel rejection

WalkView™ WalkView™ Software

  • Android Versions

  • Supports wide range of Map and Floor-Plan formats

  • Compatibility with iBwave, Ranplan, MapInfo, Asset, etc.

  • Indoor and Outdoor Modes with GPS Support

  • Raw and Averaged Data Files Available

Supported Bands

  • CBRS

  • LTE

  • UMTS/HSxPA

  • GSM/EDGE

  • CDMA2000/EV-DO

  • WIFI/WiMAX

  • Public safety / Tetra / LMR

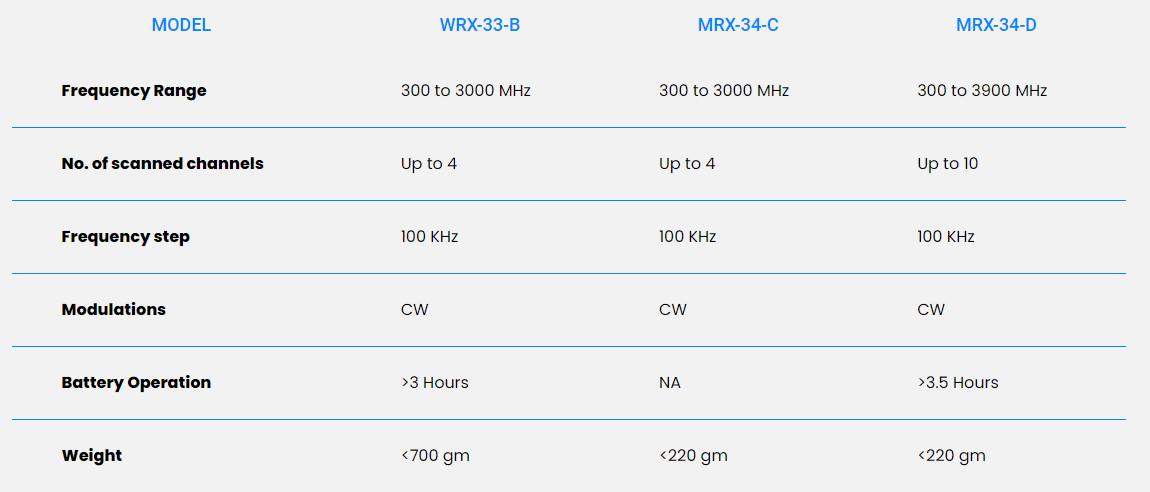

KEY SPECIFICATIONS
