CellWizard™ CW Transmitter. Up to 4.2 GHz

CellWizard™ CW Transmitter

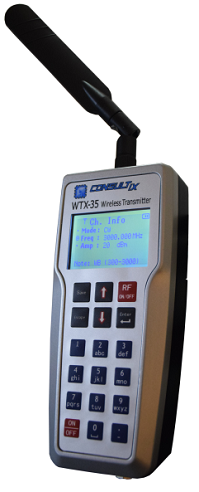

Consultix CellWizard™ test transmitters are simply field-proof portable RF signal generators yet in a form that is battery operated and heavy-duty.

The CellWizard™ CW test transmitter product line is particularly designed for multi-band field applications such as In-building site modeling (model calibration), DAS injection/testing, walk-testing as well as outdoor path model tuning, thanks to its broad range of optional power amplifiers.

The Cellwizard series is a part of Consultix family of test transmitters which comprises a variety of models covering CW, WCDMA, LTE modulations and simultaneous multi-port configurations.

HIGHLIGHTS

Consutlix’s award-winning CellWizard™ Test Transmitters are setting the standard for next-generation transmitters for indoor and outdoor applications. The wide-band frequency operation allows a single device to be used for all bands and technologies from 150 MHz to 4.2 GHz, eliminating the need to purchase and carry multiple transmitters to the site.

The superior RF Performance and output level accuracy, +20dBm standalone output power and +47 dBm with optional external power amplifiers, make it the ideal solution for indoor and outdoor propagation model tuning and DAS injection tests.

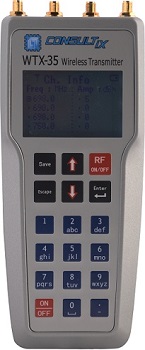

CellWizard™ Multi-port models allow utilizing one transmitter to generate up to 4 CW signals simultaneously on the device’s 4 ports. Each port operates totally independent from the other three ports and provides multi-band operation across the full frequency range of the transmitter.

Ask for our turn-key setup including high-gain test antennas, low-loss cables and non-metal tripods for the ultimate test integrity and a smoother operation.

Features

• High Accuracy

• Battery Operated

• Handheld & Lightweight

• Ergonomic user interface

• Soft-Key field upgradeable

• Modularity to save user investments and enhance logistics cycle

Supported bands

• CBRS

• LTE

• UMTS/HSxPA

• GSM/EDGE

• CDMA2000/EV-DO

• WIFI / WiMAX

• Public safety / Tetra / LMR

KEY SPECIFICATIONS

MODELWTX-05WTX-35-AWTX-35-BWTX-35-CFrequency RangeBand selection of 700, 850, 900, 1800, 1900, 2100, 2600 MHz300 to 4200 MHz150 to 3700 MHz60 to 3000 MHzNo. of ports11Up to 4 Simultaneously1Maximum output power+20 dBm+20 dBm15 dBm+20 dBmModulationsCW and WCDMACWCWCWBattery Operation105 Minutes>3 Hours105 MinutesNA .
