CellWizard™MRX-Pro CW Receiver

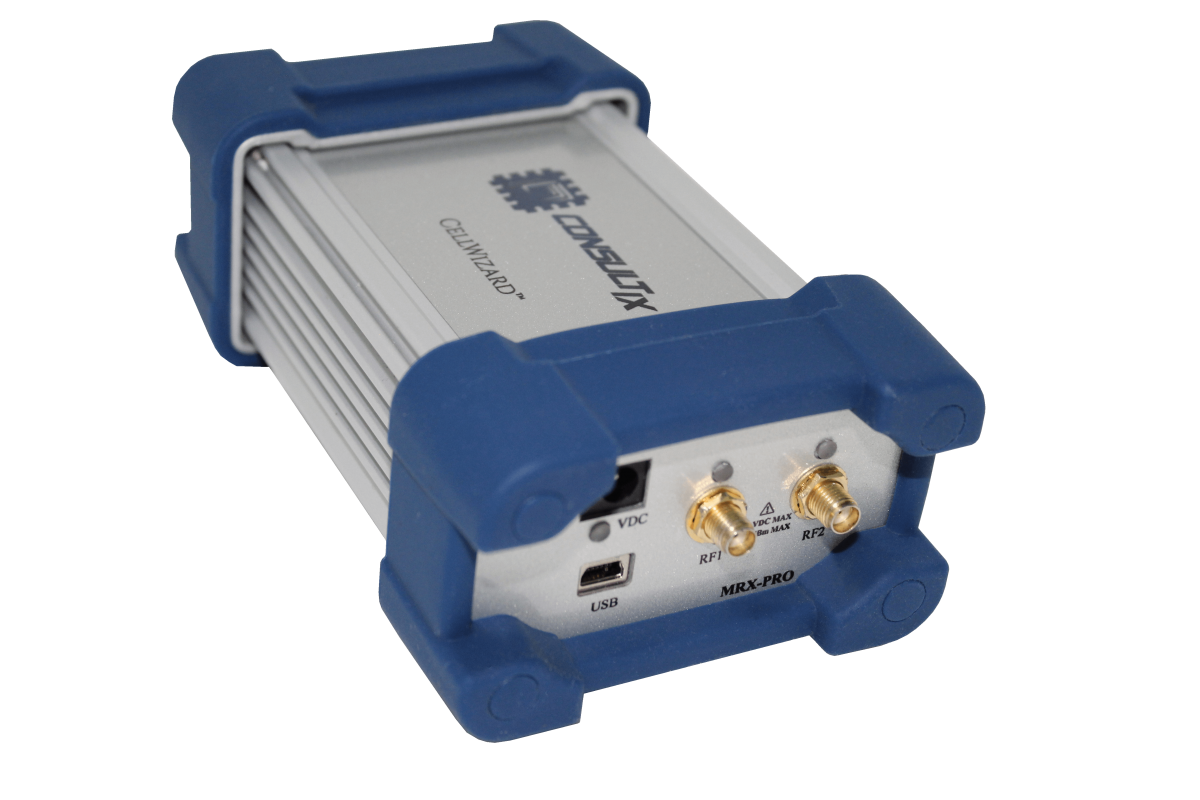

CellWizard™ MRX-Pro CW receiver is very compact, wideband, battery-operated receivers covering all cellular and public safety bands from 150 MHz to 3.9 GHz. The receiver is combined with WALKVIEW™ data collection software to automatically test & scan signal levels at high sample rates that comply with 40-λ Criteria. The test results including RSSI levels & location information are displayed on the software and can be archived or exported into radio planning software tools.


This instrument comes in different versions either multi-band single-port or multi-band dual-port. And both versions have optional odometer interface for the utmost distance sampling accuracy.

You no longer have to carry a heavy backpack, a complex scanner or a laptop when performing CW testing.

The CellWizard™ MRX-Pro together with its WalkView™ App allow you to view live measurements of multiple channels simultaneously, plot RSSI levels on maps or export all data samples to your radio planning software of choice… all from the comfort of your tablet (or Laptop for multi-band outdoor CW drive testing)

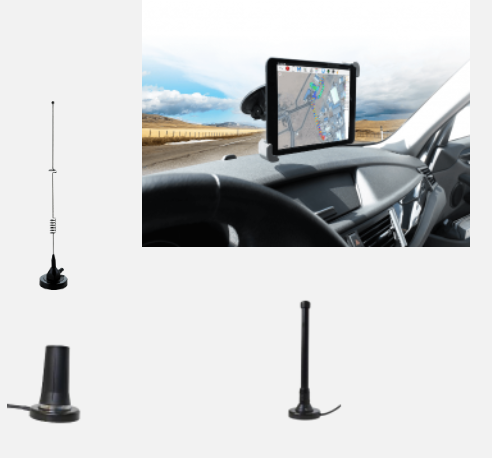

Ask for our optional accessories such as test antennas and low-loss cables for the ultimate test integrity and a smoother operation.


  • Portable Handheld Receivers

  • Multi-Channel Scanning up to 12 Channels

  • 40-λ lee Criteria Conformance: 550 samples/second

  • -127 dBm DANL

  • -35 dBc Adjacent Channel Rejection

  • Distance Sampling Mode with Wheel Trigger Support

WalkView™ Software

  • Indoor and Outdoor Android versions

  • Outdoor PC version with NMEA GPS support

  • Supports Wide Range of Maps and Floors

  • Format compatible with ASSET, Atoll, Planet, iBwave, Mapinfo etc.

  • Raw and Averaged Data Files Available

Supported Bands

  • 5G bands to 3.9 GHz

  • CBRS

  • LTE



  • CDMA2000/EV-DO


  • Public safety / Tetra / LMR


Frequency Range 150 to 3900 MHz
No. of scanned channels Up to 12
Frequency step 12.5 KHz (150 to 1500 MHz)
50 KHz (1500 to 3900 MHz)
DANL -127 dBm
Modulation CW
No. of RF Ports 2
Battery Operation 90 Minutes
Weight 600 gm
