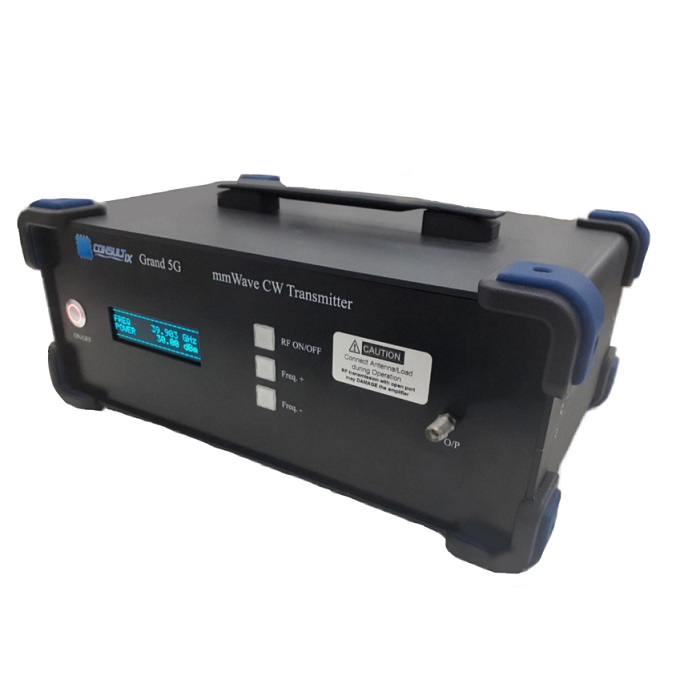

Consultix-5G mmWave CW transmitters

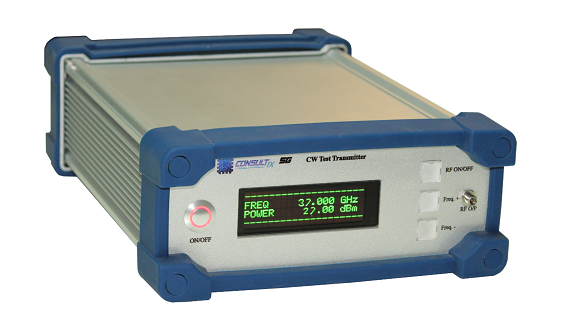

Consultix 5G CW Transmitter

Consultix 5G test transmitter family comprises portable RF signal generators that bring simplicity and affordability to mmWave test scenarios pertinent to indoor/outdoor 5G network planning.

5G networks have stimulated a prominent demand for a handheld mmWave test transmitter to characterize its channels and calibrate its propagation models.

The compact size and RF performance of this family of mmWave CW transmitters make it ideal for such field applications as well as several laboratory use cases. Thanks to its calibrated output and a wide range of operation across the bands from 24 GHz to 40 GHz.

HIGHLIGHTS

With unprecedented output power levels up to 33 dBm, this transmitter family significantly exceeds the maximum power levels attained by any other portable transmitter or traditional bench-top signal generators.

The instrument is engineered for maximum ease-of-use. Among the embodied features are the ergonomic form factor, direct user control through 2 buttons, simple LCD screen and the low power consumption that allows extended operation using an external battery pack for maximum flexibility.

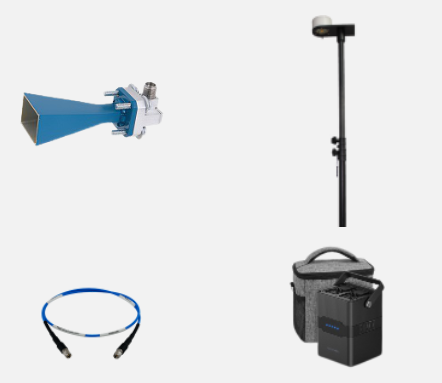

Ask for our turn-key setup including high-gain test antennas, low-loss cables and non-metal tripods for the ultimate test integrity and a smoother operation.

FEATURES

Performance

• High frequency accuracy (optional 0.3 ppm)



• Up to 40 GHz frequency range



• Up to 33 dBm output power



• Low power consumption



Convenience

• Entuitive user interface



• Ergonomic form factor with side handle



• Light weight



• High grade test accessories
