Multi-Standard Modulated Transmitter

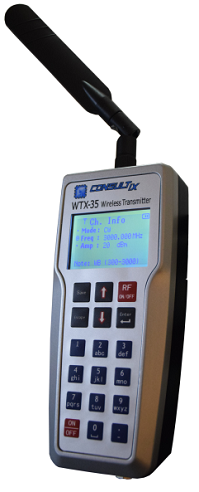

Consultix ILLUMINATOR™ is the gold standard for portable RF test transmitters/signal generators.

Wideband operation up to 6 GHz allows the ILLUMINATOR™ to address all your needs of test transmitters/signal generators even over unlicensed bands for LTE-U and LAA or the CBRS Band. This feature combined with the ultra-portable handheld form factor and innovative touch interface for maximum ease of use make the ILLUMINATOR™ a convenient choice for laboratory users as well as field applications such as DAS & Small Cells radio planning and testing.



Using modulated signals for testing makes the ILLUMINATOR™ versatile tool for myriad applications. This is vital to ensure dominance, avoid pilot pollution and validate the carrier configuration prior to deployment.

The built-in optional wideband power amplifier extends the ILLUMINATOR™ capabilities to missions that require high power CW test transmitter, whether for oDAS test and design or for performing outdoor CW model calibration.

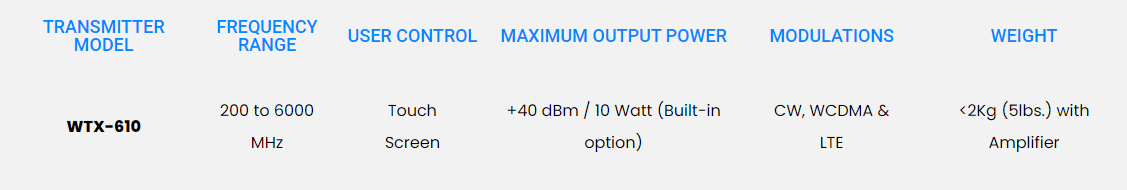

Supporting a broad frequency range from 200 to 6000 MHz in a single unit, hence covering most of the wireless bands of 2G (GSM), 3G (UMTS), 4G (LTE) as well as CBRS 3.5 GHz and WIFI 2.4/5.8 GHz with a compact handheld device.

The touchscreen provides direct user control for maximum ease and handiness that enable efficient and convenient operation.

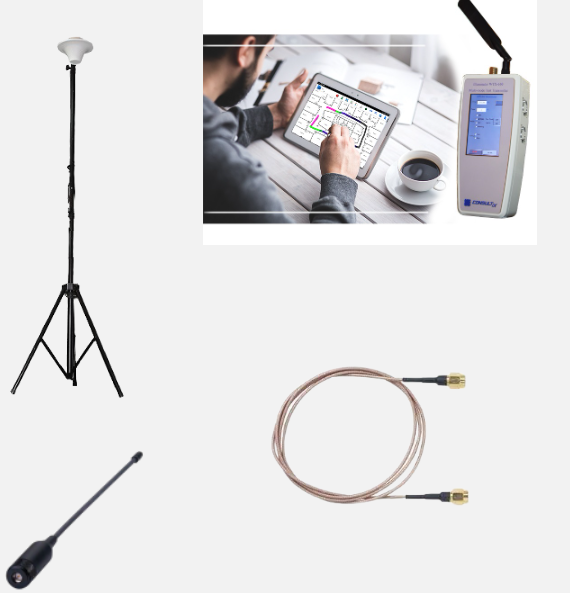

Ask for our turn-key setup including high-gain test antennas, low-loss cables and non-metal tripods for the ultimate test integrity and a smoother operation.



  • CW, WCDMA & LTE Modulations

  • Lightweight <2Kg (5lbs.)

  • Handheld & Heavy-duty

  • Touch Screen operation

  • Friendly user interface

  • Ergonomic enclosure

  • Key-word Upgradeable

  • License upgradable

Supported bands

  • CBRS

  • LTE



  • CDMA2000/EV-DO

  • WIFI / WiMAX

  • Public safety / Tetra / LMR
