PacketExpert™- Multi-Functional Ethernet/IP Test Solution

High-speed Ethernet/IP test solutions for local area networks, industrial devices and applications, metropolitan area networks, wide area networks, and mission critical networks.

  BROCHURE   PLATFORM BROCHURE


Description

PacketExpert™ 10GX is a comprehensive Ethernet/IP test solution supporting industry standard functionalities including wirespeed bit error rate testing (BERT), RFC 2544 / Y.1564 / RFC 6349 tests, packet capture, event-driven triggers and actions, traffic playback, impairment generation, stacked VLAN/MPLS tests, and many others.

The PacketExpert™ 10GX includes two 10/1 Gbps optical ports, and two 10/100/1000 Mbps electrical/optical capable ports. The 10/1 Gbps optical ports can be down-shifted to support 1 Gbps electrical ports, thus offering 4 electrical / 4 optical 1 Gbps ports for Ethernet testing. The same two 10 Gbps ports can be converted to 2.5 Gbps ports with an appropriate SFP and a simple software upgrade.

GL also enhanced PacketScanPX™ application which combines the features of PacketScan™ analyzer with the capabilities of PacketExpert™ hardware capture and filter features.

PacketScanPX™ utilizes the PacketExpert™ hardware's 1G/10G wirespeed capture and filter capability, and combines it with PacketScan™'s real time Protocol Analysis, VoIP analysis, Voice Band Analysis, Call Data records etc. features, resulting in a powerful and flexible tool that meets any Ethernet/IP network monitoring needs.

For more information refer to PacketScanPX™ webpage.

Key Features

Wirespeed Bit Error Rate Testing

RFC 2544 - Throughput, latency, frame loss, and back-to-back performance tests

PacketBroker with programmable TTL trigger output

Network Emulation - Emulate WAN conditions in the lab

ITU-T Y.1564 - Service Level Agreements (SLA)

Wirespeed Packet Capture, Filter, Aggregate, & Storage

Layerwise Testing - Ethernet, Stacked VLAN
(Q-in-Q), Stacked MPLS, IP, UDP

Smart Loopback (auto layer detection) and Layer-wise loopback testing

10 Mbps, 100 Mbps (Base-T and Base-FX), 1G, 2.5G, 10G speeds

Electrical and Optical (SFP and SFP+) Interfaces

Portable and Rack mount form factors, including high density racks up to 24 ports

Automation - Python and C# APIs

RFC 6349 based TCP Throughput Testing - Test with Multiple TCP Streams

Multi Stream TCP/UDP Traffic Generation and Analysis

Portable, Browser based, Multi-functional IP/Ethernet Tester

Solutions

Packet Filtering and Critical Delay Measurement in Air Traffic Management

Detailed Features

• 10/100/1000 Mbps Electrical - 4 ports (2 RJ45 and 2 Copper SFP)
• 100 Mbps / 1 Gbps Optical - 4 ports (SFP)
• 2.5 Gbps Electrical - 2 ports (Copper SFP)
• 10 Gbps Optical - 2 ports (SFP+)
• Support for frame lengths from 64 bytes to Jumbo frames (up to 16000 bytes)
• Portable form factor - software runs on a PC/laptop connected to the hardware via USB
• Field testing form factor - software and hardware combined into a windows based box with WiFi support and Web based access. Access software from mobile or tablet connected via WiFi
• Rack mount form factor - available in 1U rack unit with hardware and software running on a windows box with LAN management port
• High density form factor - 1U/2U rack based units with 12 or 24 ports and an embedded Windows PC
• Wirespeed Bit Error Rate Testing, optionally complemented by Remote Smart Loopback
• ITU-T Y.1564, in conjunction with remote Smart Loopback
• RFC 2544 - Throughput, Latency, Frame Loss, and Back-to-Back performance tests

• RFC 6349 based TCP Throughput Testing - test with multiple TCP streams
• Emulate impairments such as congestion, latency, loss, jitter and packet reordering
• APIs provided in Python, C# and TCL for easy automation and integration into tools such as Labview
• PacketBroker - Aggregated Ethernet network tap and filter. Can include 12 transistor-transistor logic (TTL) triggers based on user defined packet detection
• Multi stream traffic generation and analysis - send and receive multiple UDP streams and measure throughput, packet loss, delay, jitter and packet reordering at full wirespeed
• Non intrusive packet filter/capture at wirespeed - capture and store the traffic for later analysis in GL propreitary or Wireshark formats
• Smart Loopback - automatically swap MAC/IP Addresses or UDP Ports and loop back incoming traffic. Complements BERT, RFC 2544, Y.1564 and Multi stream UDP testing by acting as a remote responder
• Playback previously recorded traffic to emulate real world traffic. Hardware based playback ensures highly precise timing reproduction
• IPv4 and IPv6 compatibility
• Stacked VLAN (QinQ) - up to 3 stacked VLAN supported
• Stacked MPLS - up to 3 stacked MPLS support

Specifications

STAND ALONE UNIT

• Physical Specification

  Length: 8.45 in. (214.63 mm)
  Width: 5.55 in. (140.97 mm)
  Height: 1.60 in (40.64 mm)
• Weight: 1.713 lbs
• External Power Supply

  +12 Volts, 3 Amps
  (For portable units having serial number ≥ 188400)

  +9 Volts, 2 Amps
  (For portable units having serial number < 188400)

• Temperature

  Operating Temperature:

  0° C to +50° C (only up to operating altitude of 5000 feet, and for Optical SFPs only i.e. Non Electrical SFPs)

  +5° to +40° C (for operating altitude up to 10,000 feet, and for both Electrical and Optical SFPs)

  Non-Operating Temperature: -30° to +60° C

• Humidity

  Operating Humidity: 0% to 80% RH
  Non-Operating Humidity: 0% to 95% RH

• Altitude

  Operating Altitude: up to 10,000 feet
  Non-Operating Altitude: up to 50,000 feet

• Protocols

  IEEE 802.3ae LAN PHY compliance
  RFC 2544 compliance
• Bus Interface - USB 3.0

  Optional 4-Port SMA Jack Trigger Board
  (TTL Input/Output)

REQUEST A QUOTE

MTOP™ RACK UNITS

• Physical Specification

  Length: 16 in (406.4)
  Width: 19 in (482.6)
  Height: 1U / 2U
• Weight: (not including the rails)

  1U with 3x PXN100 : 11 lbs
  2U with 6x PXN100 : 22 lbs
• Power Supply : ATX Power Supply

• Temperature

  Operating Temperature:

  0° C to +50° C (only up to operating altitude of 5000 feet, and for Optical SFPs only i.e. Non Electrical SFPs)

  +5° to +40° C (for operating altitude up to 10,000 feet, and for both Electrical and Optical SFPs)

  Non-Operating Temperature: -30° to +60° C

• Humidity

  Operating Humidity: 0% to 80% RH
  Non-Operating Humidity: 0% to 95% RH

• Altitude

  Operating Altitude: up to 10,000 feet
  Non-Operating Altitude: up to 50,000 feet

• Rack Enclosures

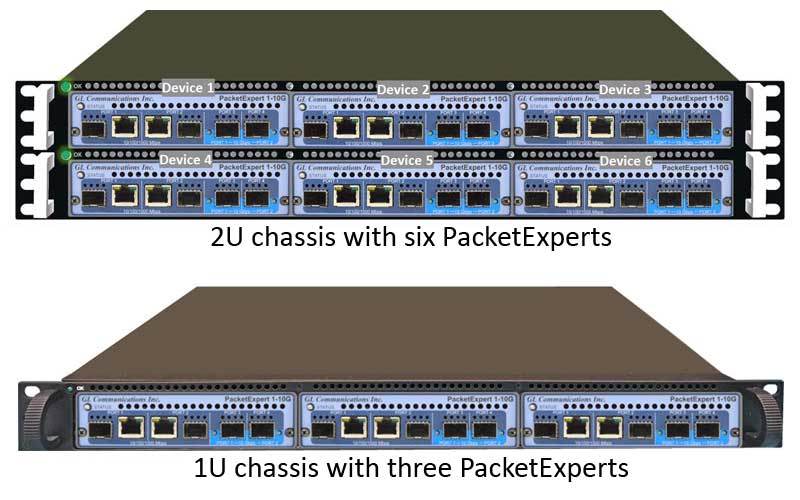

  1U mTOP™ (MT001 + 3x PXN100)
  Rackmount Enclosure can support up to 3 PXN100s

  2U mTOP™ (MT003 + 6x PXN100)
  Rackmount Enclosure can support up to 6 PXN100s

  Optional 4 to 12 Port SMA Jack Trigger Board
  (TTL Input/Output)
• Embedded PC Specifications

  Intel Core i3, Win10 Pro 64-bit OS

  USB 3.0 Hub, ATX Power Supply

  Min 128GB Hard drive, 8G Memory

REQUEST A QUOTE

MTOP™ PROBE UNIT

• Physical Specification

  Length: 10.4 in. (264.16 mm)
  Width: 8.4 in. (213.36 mm)
  Height: 3.0 in. (76.2 mm)

  Optional 4-Port SMA Jack Trigger Board
  (TTL Input/Output)

  External USB based Wi-Fi adaptor
• External Power Supply: +12 Volts, 3 Amps

• Temperature

  Operating Temperature:

  0° C to +50° C (only up to operating altitude of 5000 feet, and for Optical SFPs only i.e. Non Electrical SFPs)

  +5° to +40° C (for operating altitude up to 10,000 feet, and for both Electrical and Optical SFPs)

  Non-Operating Temperature: -30° to +60° C

• Humidity

  Operating Humidity: 0% to 80% RH
  Non-Operating Humidity: 0% to 95% RH

• Altitude

  Operating Altitude: up to 10,000 feet
  Non-Operating Altitude: up to 50,000 feet

• SBC Specifications

  Intel Core i3 or optional i7 NUC Equivalent,

  Windows® 10 64-bit Pro Operating System

  USB 2.0 or 3.0 Ports, ATX Power Supply

  256 GB Hard drive, 8G Memory (Min)

  Two HDMI ports (Optional VGA to HDMI interface)

REQUEST A QUOTE

Ethernet Testers

PacketExpert™ 10GX

• 2x Optical 10 Gbps ports (10 Gbps BASE-SR, -LR -ER full-duplex SFP)
• 2x 100 Mbps Base-FX optical interface
• 2x 2.5 Gbps Electrical ports
• 4x Electrical 10/100/1000 Mbps ports (Base-T Electrical) OR 4x 1 Gbps Optical (Base-X Optical SFP)

  • Includes 10 Gbps ports downshift to 1 Gbps
  • In 10GX platform 1G mode, each port can be either Electrical or Optical
• Switch between electrical and optical

PacketExpert™ 1G

• All 4 ports can be electrical supporting 10/100/1000 Mbps Full Duplex mode
• 2 of the 4 ports can be optical supporting 1000 Mbps line rate Full Duplex mode

A complete comparison of all PacketExpert™ platforms is available

  ETHERNET TESTERS - COMPARISON
