RF Shield Boxes

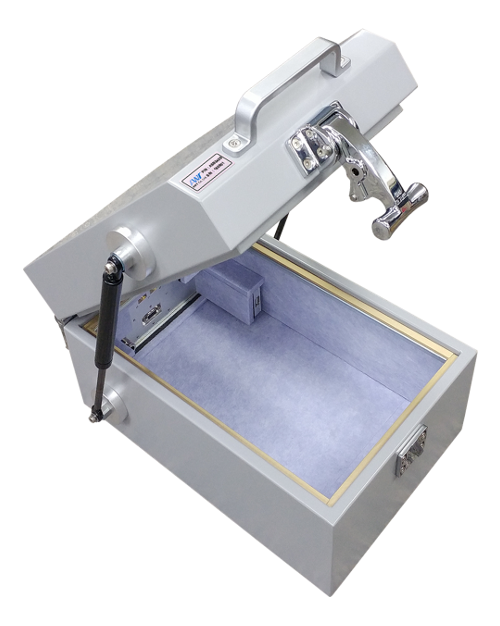

AWT’s newly re-designed ASB-S series shielding boxes are ideal for R&D and equally well suited for high volume production applications. Due to their robust, reliable design, ergonomic handling features and excellent shielding capabilities, our ASB RF shielding boxes are the products of choice for demanding applications.

Features

  • Excellent shielding performance
  • Highest quality materials and workmanship
  • Very reliable and durable
  • Designed for heavy duty use
  • Comfortable operation due to specially designed ergonomic handle & locking mechanism
  • Multiple EMI filter options for power, data and control interfaces
  • Made in S.Korea



RF Shield Boxes

AWT’s RF shield boxes are built to test and measure any kind of electronic module or device that needs to be protected from unwanted RF signals. Our shielding enclosures shield effectively against RF interferences, even in extreme RF environments. AWT’s shield boxes are robust and for heavy duty applications. With their excellent shielding capabilities, even after thousands of cycles, they are well suited for R&D or high volume production. A wide range of high quality filters allow to controll and communicating with the DUT with minimal influence of the shielding performance.



Models and Options

Model

Description

ASB250S RF Shield Box, Shielding >70 dB @ 0.5 – 2.0 GHz, >75 dB @ 2.0 – 6.0 GHz, Dimensions inside: 250 x 180 x 165 mm (9.8 x 7.1 x 6.5 in), Dimensions outside: 300 x 230 x 210 mm (11.8 x 9.1 x 8.3 in), Absorber 4.6T / Polyester Fiber 9T, Weight 15kg (33 lbs)
ASB300S RF Shield Box, CUBE30, Shielding >70 dB @ 0.5 – 2.0 GHz, >75 dB @ 2.0 – 6.0 GHz, Dimensions inside: 300 x 300 x 300 mm (11.8 x 11.8 x 11.8 in), Dimensions outside: 350 x 350 x 350 mm (13.8 x 13.8 x 13.8 in), Absorber 4.6T / Polyester Fiber 9T, Weight 21kg (46.2 lbs)
ASB340S RF Shield Box, Shielding >70 dB @ 0.5 – 2.0 GHz, >75 dB @ 2.0 – 6.0 GHz, Dimensions inside 340 x 200 x 175 mm, Dimensions outside 390 x 250 x 210 mm (15.4 x 9.8 x 8.3 in), Absorber 4.6T / Polyester Fiber 9T,Weight 18kg (39.6 lbs)
ASB370S RF Shield Box, Shielding >70 dB @ 0.5 – 2.0 GHz, >75 dB @ 2.0 – 6.0 GHz, Dimensions inside 370 x 200 x 215 mm (14.6 x 7.9 x 8.5 in), Dimensions outside 420 x 250 x 260 mm (16.5 x 9.8 x 10.2 in), Absorber 4.6T / Polyester Fiber 9T, Weight 21kg (46.2 lbs)
ASB370S-B RF Shield Box, Bottom Interface Panel, Shielding >70 dB @ 0.5 – 2.0 GHz, >75 dB @ 2.0 – 6.0 GHz, Dimensions inside 370 x 200 x 215 mm (14.6 x 7.9 x 8.5 in), Dimensions outside 420 x 250 x 312 mm (16.5 x 9.8 x 12.3 in), Absorber 4.6T / Polyester Fiber 9T, Weight 21kg (46.2 lbs)
ASB600S RF Shield Box, CUBE60, Shielding >70 dB @ 0.5 – 2.0 GHz, >75 dB @ 2.0 –  6.0 GHz, Dimensions inside 600 x 600 x 605 mm (23.6 x 23.6 x 23.8 in), Dimensions outside 650 x 650 x 650 mm (25.6 x 25.6 x 25.6 in), Absorber 4.6T / Polyester Fiber 9T, Weight 130kg (265 lbs)

Accessories

   ASB-SMA RF-Port SMA(f) – SMA(f), 4-hole flange
   ASB-N RF-Port N(f) – N(f), 4-hole flange
     ASB-DSUB9 D-SUB port for ASB, DSUB-9, 1000pf PI filter, 3Mbps/100VDC, 1A/pin,5A max
     ASB-DSUB25 D-SUB port for ASB, DSUB-25, 1000pf PI filter, 3Mbps/100VDC, 1A/pin,5A max
     ASB-USB-2 USB-2.0 filter, 480Mbps / 5V, 500mA
     ASB-USB-3 USB-3.0 filter, 5000Mbps / 5V, 900mA
     ASB-RJ45 Ethernet RJ45 filter, 1Gbit/s, Copper line, Ethernet(1000 BASE-T)
ASB-DCP DC Port (high current) for ASB 48V / 10A, EMI Filter, Banana Jacks
  ASB-ACP AC Port max AC220V 5A, EMI Filter

Specifications

Shielding Effectiveness > 70 dB @ 500 MHz to 2.0 GHz
> 75 dB @ 2.0 GHz to 6.0 GHz

Dimensions

Model

Inner Dimensions

Outer Dimensions
(handle not included)

ASB250S 250 x 180 x 165 mm
9.8 x 7.0 x 6.5 in
300 x 230 x 210 mm
11.8 x 9.1 x 8.3 in
ASB300S 300 x 300 x 300 mm
11.8 x 11.8 x 11.8 in
350 x 350 x 350 mm
13.8 x 13.8 x 13.8 in
ASB340S 340 x 200 x 175 mm
13.4 x 7.9 x 6.9 in
390 x 250 x 210 mm
15.4 x 9.8 x 8.3 in
ASB370S 370 x 200 x 212 mm
14.6 x 7.9 x 8.5 in
420 x 250 x 260 mm
16.5 x 9.8 x 10.2 in
ASB600S 600 x 600 x 605 mm
23.6 x 23.6 x 23.8 in
650 x 650 x 650 mm
25.6 x 25.6 x 25.6 in
